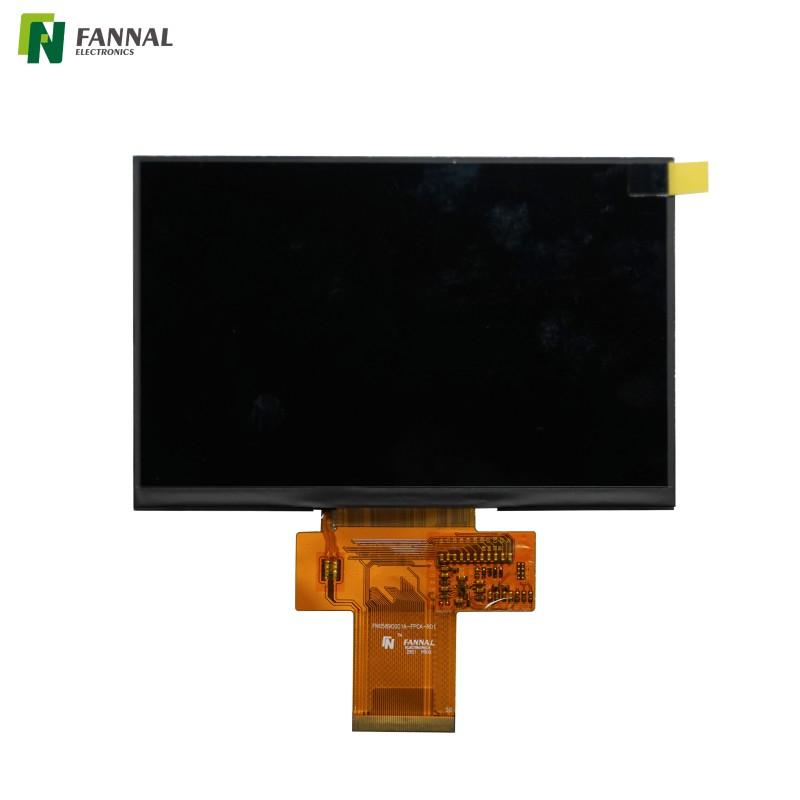

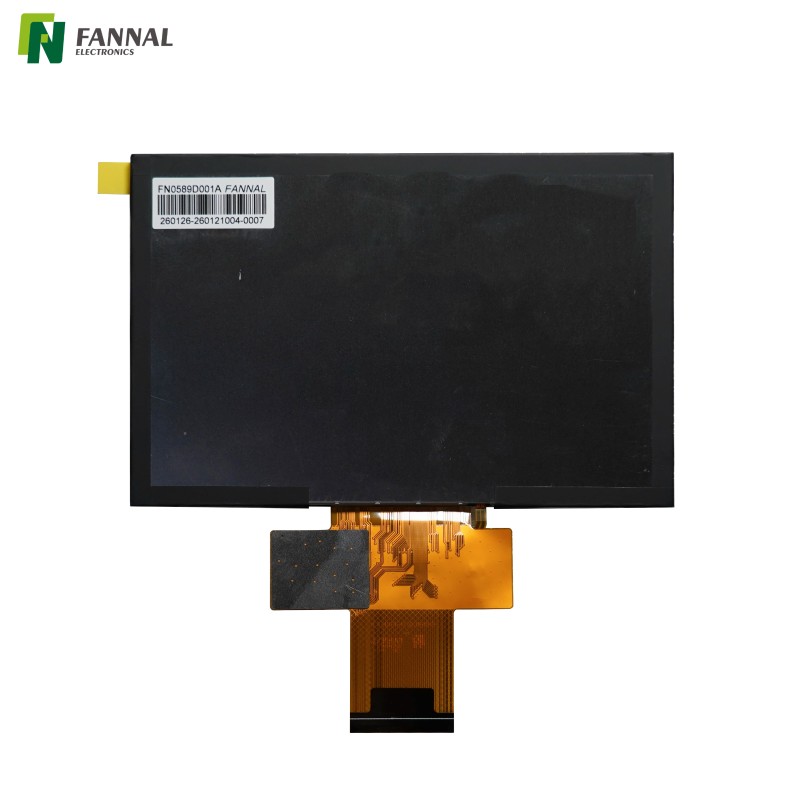

5.89 英寸阳光下可视 TFT 液晶显示屏 | 840×512 RGB接口

绘画<\/h2>

<\/div><\/figure>

<\/p>

规格<\/h2>

<\/colgroup>

范围<\/strong><\/p><\/td>	规格<\/strong><\/p><\/td>	单元<\/strong><\/p><\/td><\/tr>
液晶屏尺寸<\/strong><\/span><\/p><\/td>	5.89（对角线）<\/span><\/p><\/td>	英寸<\/span><\/p><\/td><\/tr>
分辨率<\/strong><\/span><\/p><\/td>	840（水平）x 512（垂直）<\/span><\/p><\/td>	像素<\/span><\/p><\/td><\/tr>
液晶屏类型<\/strong><\/span><\/p><\/td>	透射式<\/span><\/p><\/td>	-<\/span><\/p><\/td><\/tr>
显示模式<\/strong><\/span><\/p><\/td>	通常是黑色的<\/span><\/p><\/td>	-<\/span><\/p><\/td><\/tr>
像素间距<\/strong><\/span><\/p><\/td>	0.0507（水平）×3×0.1521（垂直）<\/span><\/p><\/td>	毫米<\/span><\/p><\/td><\/tr>
活动区域<\/strong><\/span><\/p><\/td>	127.764（水平）x 77.8752（垂直）<\/span><\/p><\/td>	毫米<\/span><\/p><\/td><\/tr>
模块尺寸<\/strong><\/span><\/p><\/td>	134.22（宽）×87.39（高）×3.06（深）<\/span><\/p><\/td>	毫米<\/span><\/p><\/td><\/tr>
界面<\/strong><\/span><\/p><\/td>	RGB 24位<\/span><\/p><\/td>	-<\/span><\/p><\/td><\/tr>
驱动IC<\/strong><\/span><\/p><\/td>	JD9168S<\/span><\/p><\/td>	-<\/span><\/p><\/td><\/tr>
亮度<\/strong><\/span><\/p><\/td>	1000（典型值）/800（最小值）<\/span><\/p><\/td>	cd/平方米<\/span><\/p><\/td><\/tr>
对比度<\/strong><\/span><\/p><\/td>	800:1<\/span><\/p><\/td>	-<\/span><\/p><\/td><\/tr>
工作温度<\/strong><\/span><\/p><\/td>	-20 ~ +65<\/span><\/p><\/td>	℃<\/span><\/p><\/td><\/tr>
储存温度<\/strong><\/span><\/p><\/td>	-30 ~ +75<\/span><\/p><\/td>	℃<\/span><\/p><\/td><\/tr><\/tbody><\/table><\/div> <\/p> 引脚定义<\/h3> <\/colgroup> 引脚号<\/strong><\/p><\/td> 象征<\/strong><\/p><\/td><\/tr> 1<\/span><\/p><\/td> 莱达<\/span><\/p><\/td><\/tr> 2<\/span><\/p><\/td> 莱达<\/span><\/p><\/td><\/tr> 3<\/span><\/p><\/td> LEDK<\/span><\/p><\/td><\/tr> 4<\/span><\/p><\/td> LEDK<\/span><\/p><\/td><\/tr> 5<\/span><\/p><\/td> GND<\/span><\/p><\/td><\/tr> 6<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr> 7<\/span><\/p><\/td> VDD<\/span><\/p><\/td><\/tr> 8<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr> 9<\/span><\/p><\/td> de<\/span><\/p><\/td><\/tr> 10<\/span><\/p><\/td> vsync<\/span><\/p><\/td><\/tr> 11<\/span><\/p><\/td> hsync<\/span><\/p><\/td><\/tr> 12<\/span><\/p><\/td> B7<\/span><\/p><\/td><\/tr> 13<\/span><\/p><\/td> B6<\/span><\/p><\/td><\/tr> 14<\/span><\/p><\/td> B5<\/span><\/p><\/td><\/tr> 15<\/span><\/p><\/td> B4<\/span><\/p><\/td><\/tr> 16<\/span><\/p><\/td> B3<\/span><\/p><\/td><\/tr> 17<\/span><\/p><\/td> B2<\/span><\/p><\/td><\/tr> 18<\/span><\/p><\/td> B1<\/span><\/p><\/td><\/tr> 19<\/span><\/p><\/td> B0<\/span><\/p><\/td><\/tr> 20<\/span><\/p><\/td> G7<\/span><\/p><\/td><\/tr> 21<\/span><\/p><\/td> G6<\/span><\/p><\/td><\/tr> 22<\/span><\/p><\/td> G5<\/span><\/p><\/td><\/tr> 23<\/span><\/p><\/td> G4<\/span><\/p><\/td><\/tr> 24<\/span><\/p><\/td> G3<\/span><\/p><\/td><\/tr> 25<\/span><\/p><\/td> G2<\/span><\/p><\/td><\/tr> 26<\/span><\/p><\/td> G1<\/span><\/p><\/td><\/tr> 27<\/span><\/p><\/td> G0<\/span><\/p><\/td><\/tr> 28<\/span><\/p><\/td> R7<\/span><\/p><\/td><\/tr> 29<\/span><\/p><\/td> R6<\/span><\/p><\/td><\/tr> 30<\/span><\/p><\/td> R5<\/span><\/p><\/td><\/tr> 31<\/span><\/p><\/td> R4<\/span><\/p><\/td><\/tr> 32<\/span><\/p><\/td> R3<\/span><\/p><\/td><\/tr> 33<\/span><\/p><\/td> R2<\/span><\/p><\/td><\/tr> 34<\/span><\/p><\/td> R1<\/span><\/p><\/td><\/tr> 35<\/span><\/p><\/td> 罗0<\/span><\/p><\/td><\/tr> 36<\/span><\/p><\/td> GND<\/span><\/p><\/td><\/tr> 37<\/span><\/p><\/td> DCLK<\/span><\/p><\/td><\/tr> 38<\/span><\/p><\/td> GND<\/span><\/p><\/td><\/tr> 39<\/span><\/p><\/td> shlr<\/span><\/p><\/td><\/tr> 40<\/span><\/p><\/td> UPDN<\/span><\/p><\/td><\/tr> 41<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr> 42<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr> 43<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr> 44<\/span><\/p><\/td> 重置<\/span><\/p><\/td><\/tr> 45<\/span><\/p><\/td> 数控/CSX<\/span><\/p><\/td><\/tr> 46<\/span><\/p><\/td> 数控/SCL<\/span><\/p><\/td><\/tr> 47<\/span><\/p><\/td> 数控/SDI<\/span><\/p><\/td><\/tr> 48<\/span><\/p><\/td> GND<\/span><\/p><\/td><\/tr> 49<\/span><\/p><\/td> StbyB<\/span><\/p><\/td><\/tr> 50<\/span><\/p><\/td> NC<\/span><\/p><\/td><\/tr><\/tbody><\/table><\/div> <\/p><\/div>","type":"7"}

定制<\/h2>

为了满足多样化的集成需求，我们为您提供广泛的定制服务，包括：<\/span><\/p>

● <\/strong><\/span>自定义显示选项<\/strong><\/span><\/a><\/h3>

液晶面板<\/strong><\/h4>

• 尺寸范围：1.77' 至 15.6'
• 值得信赖的面板合作伙伴：京东方、群创、JDI、瀚宇彩晶、CTC、TCL 和 天马<\/a>.
• 面板类型：IPS / TN / LTPS
• 工作温度：工业（-20 ~ 70°C）、汽车（-30 ~ 85°C）<\/p>

界面设计<\/strong><\/h4>

• 定制的形状、长度和PIN 定义可实现完全兼容性。
• EMI 屏蔽和电路优化。
• 支持多种转换：SPI、MCU、RGB、MIPI、LVDS、EDP<\/p>

背光源<\/strong><\/h4>

• 模块材料选项：金属/塑料/金属-塑料一体化
• 亮度高达30,000 cd/m²，非常适合户外或工业使用。
• 使用寿命长达50,000 小时。<\/p>

驱动板<\/strong><\/h4>

• 选项：RGB / VGA / HDMI / LVDS / DVI / Type-C
• 与定制TFT 和LCD 模块完全兼容。<\/p>

• 优化设计，确保稳定的图像传输和性能。<\/p>

<\/p>

●<\/strong> <\/strong><\/span>定制触摸屏选项<\/strong><\/span><\/a><\/h3>

触摸传感器<\/strong><\/h4>

• 可用尺寸：最大 65\"<\/p>

• 结构选项：G+G、G+F+F，专为工业和汽车应用而设计<\/p>

• 触摸功能：支持多点触摸、防水、手套触摸、无源笔、手势和防手掌误触<\/p>

• 工作温度：<\/p>

工业级：–20°C ~ +70°C<\/p>

汽车级：–30°C ~ +85°<\/p>

触摸控制器（IC）<\/strong><\/h4>

• 由FANNAL提供触摸调节和固件优化（内部固件设计）
• 值得信赖的IC合作伙伴：EETI、ILITEK、GOODiX、FocalTech、Cypress、 Microchip <\/a>（FANNAL的设计合作伙伴）
• 高可靠性：出色的抗干扰性和长期稳定性
• EMC设计：全面的电磁兼容工程，满足EMI/RFI和工业标准<\/p>

盖板镜片<\/strong><\/h4>

• 材料选择：<\/p>

玻璃：0.55mm–10.0mm
PMMA：0.5mm–3.0mm
PC：0.1m <\/span>m–1.0mm
• 定制设计：CNC、热弯、3D 和 2.5D 盖板玻璃、陶瓷印刷和 PMMA 集成
• 表面处理：
3A：AG / AR / AF
抗菌/防爆<\/p>

● <\/strong><\/span>定制光学贴合<\/strong><\/span><\/a> 服务<\/strong><\/span><\/h3>

<\/colgroup>

光学贴合<\/strong><\/p><\/td>	尺寸范围<\/strong><\/p><\/td>	笔记<\/strong><\/p><\/td><\/tr>
奥卡<\/strong><\/p><\/td>	最大 15.6”<\/p><\/td>	两条用于大批量生产的全自动生产线<\/p><\/td><\/tr>
定位/OCR<\/strong><\/p><\/td>	最大 32”<\/p><\/td>	出色的高对比度和耐用性<\/p><\/td><\/tr>
硅酮<\/strong><\/p><\/td>	最大 32”<\/p><\/td>	坚固耐用的大型工业应用的理想选择<\/p><\/td><\/tr><\/tbody><\/table><\/div> <\/p><\/div>","type":"7"}
